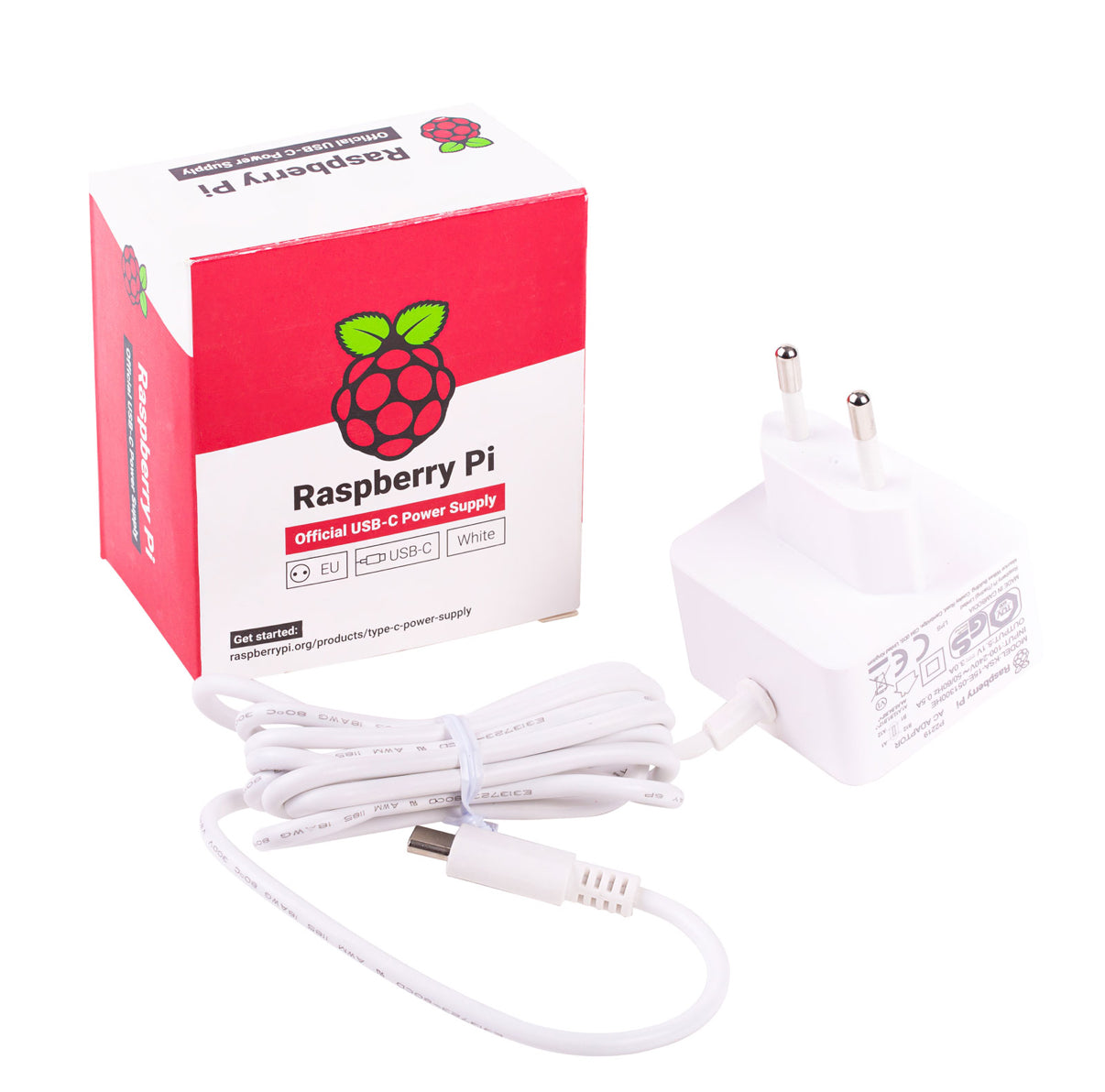

Raspberry Pi 4 Model B Official PSU, USB-C, 5.1V, 3A, EU Plug, White

2 sold in last 8 hours
RASPBERRY-PI-PLUG
41 In stock
R 250.00
Specification Output Output voltage: +5.1V DC Minimum load current: 0A Nominal load current: 3.0A Maximum power: 15.3W Load regulation: ±5% Line regulation: ±2% Ripple & noise: 120mVp-p Rise time: 100ms maximum to regulation limits for DC outputs Turn-on delay: 3000ms maximum at nominal input AC voltage and full load Protection:...
R 250.00
Terms & Conditions

Free Shipping

Free standard shipping on orders over R500

Estimated Delivery Time - 4 business days

Shipping

We ship to South Africa. Note that there are restrictions on some products.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full Rand.

customers are viewing this product

Specification

Output

Output voltage: +5.1V DC

Minimum load current: 0A

Nominal load current: 3.0A

Maximum power: 15.3W

Load regulation: ±5%

Line regulation: ±2%

Ripple & noise: 120mVp-p

Rise time: 100ms maximum to regulation limits for

DC outputs

Turn-on delay: 3000ms maximum at nominal input AC

voltage and full load

Protection: Short circuit protection

Overcurrent protection

Over temperature protection

Efficiency: 81% minimum (output current from 100%,

75%, 50%, 25%)

72% minimum at 10% load

Output cable: 1.5m 18AWG

Output connector: USB Type-C

Input

Voltage range: 100-240Vac (rated)

96-264Vac (operating)

Frequency: 50/60Hz ±3Hz

Current: 0.5A maximum

Power consumption (no load): 0.075W maximum

Inrush current: No damage shall occur and the input fuse

shall not blow

3 Raspberry Pi 15.3W USB-C Power SupplyPlug styles

Part number Colour Plug Style Plug Type

    Raspberry Pi 4 Model B Official PSU, USB-C, 5.1V, 3A, EU Plug, White
